HF Desktop Reader

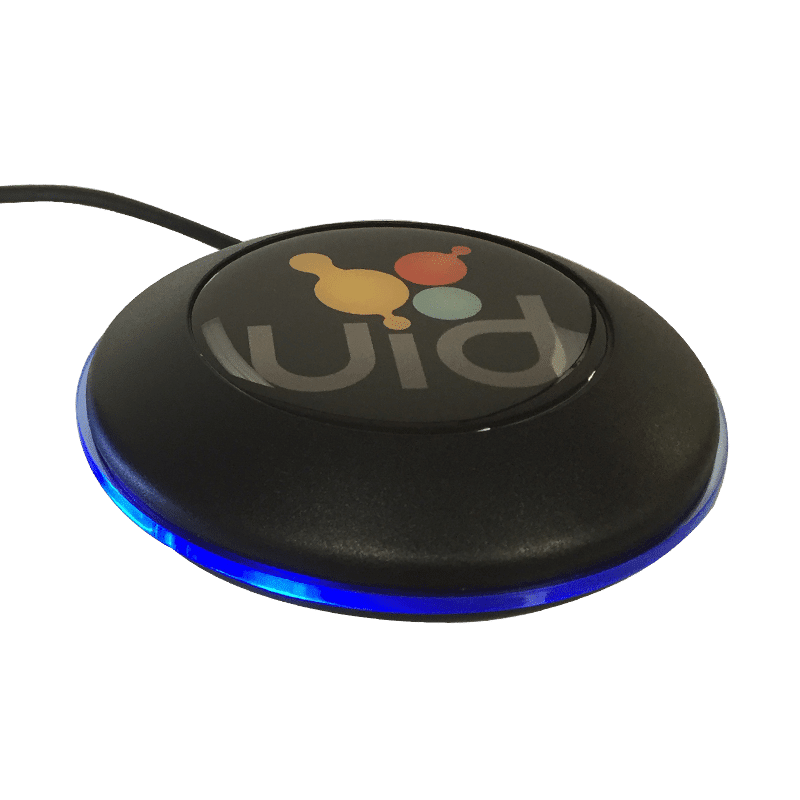

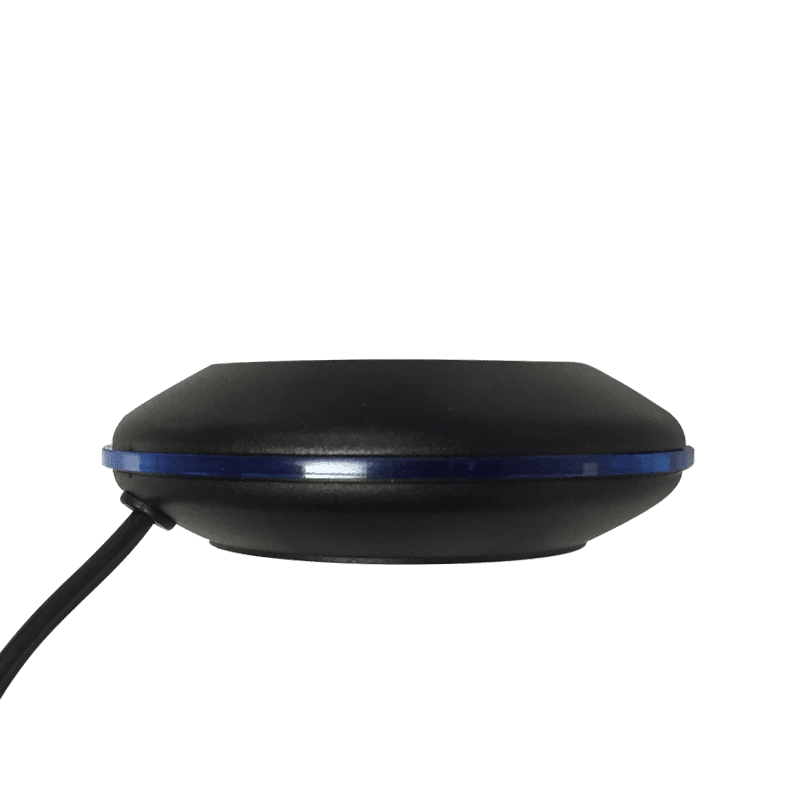

The UID HF Desktop reader combines the functionality of a handheld reader in a stationary desktop model. This HF Desktop reader connects directly to a PC and can operate in USB or HID mode for simple communication to most any software platform. This reader can be used for laboratory animal identification (UID Eartag) or for Pet or Wildlife applications with HF microchips, access control cards, or industrial harsh environment tags. The HF Desktop reader works with UID mouse ear tags, and ISO 14443A and SIO 15693 in 13.56 mHz frequencies.   If you are looking for a simple low cost desktop reader for transponder/microchip identification this one will suite your need. A blue light ring illuminates when it is powered and it flashes when a chip is present. Simple to use and standard USB/HID interface.

  • Frequency: 13.56 mHz
  • Reading Systems: ISO 1443A, 15693
  • Interface: USB, HID
  • Size: 110mm diameter x 30mm height
  • Blue LED indicator lights
How to Order



SKU: UDT-100H Categories: ,

Description

The UID HF Desktop reader combines the functionality of a handheld reader in a stationary desktop model. This HF Desktop reader connects directly to a PC and can operate in USB or HID mode for simple communication to most any software platform. This reader can be used for laboratory animal identification (UID Eartag) or for Pet or Wildlife applications with HF microchips, access control cards, or industrial harsh environment tags. The HF Desktop reader works with UID mouse ear tags, and ISO 14443A and SIO 15693 in 13.56 mHz frequencies.   If you are looking for a simple low cost desktop reader for transponder/microchip identification this one will suite your need. A blue light ring illuminates when it is powered and it flashes when a chip is present. Simple to use and standard USB/HID interface.

  • Frequency: 13.56 mHz
  • Reading Systems: ISO 1443A, 15693
  • Interface: USB, HID
  • Size: 110mm diameter x 30mm height
  • Blue LED indicator lights
How to Order



Call us at 224-444-8484 to enquire about our Free Reader Program with the purchase of 1000 Implantable Transponders.
