Home Cage Monitoring

Choose the right home-cage monitoring system for your study.

UID builds three home-cage monitoring systems — from single-cage temperature readers to full-plate activity + temperature platforms. Compare capabilities, calculate ROI, and find the one that fits your protocol.

Jump to ROI Calculator

What is home cage monitoring?

Traditional vivarium monitoring relies on daily manual cage checks — a human opening cages, lifting animals, logging observations. It's labor-intensive, introduces experimenter bias, stresses the animals, and only catches health events at the moment of the check.

Home cage monitoring replaces those checks with continuous, non-invasive instrumentation. Individual animal IDs, body temperatures, and activity patterns stream automatically from inside the cage — 24/7, with time-stamped objectivity. The outcome: earlier detection of welfare events, cleaner data, and dramatically less tech labor.

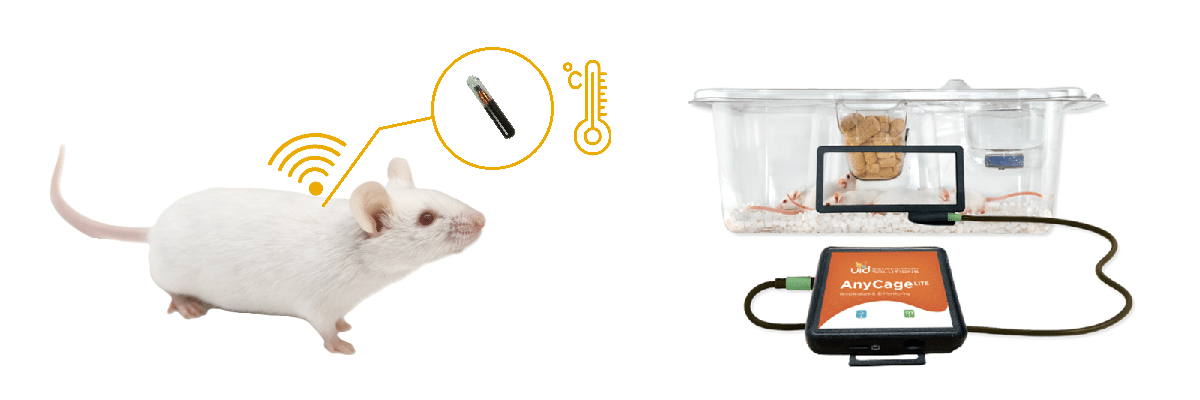

Mouse with UID implantable sensor inside a home cage — illustrating non-invasive continuous monitoring
Data Stream Decision

Activity & Temperature

Different research questions call for different data streams. Here's how to decide.

AnyCage Family
Temperature Only
Temperature-only monitoring
  • Best for Pharmacology, toxicology, and oncology studies where body temperature is the primary physiological biomarker
  • What it captures Individual animal ID + ±0.1°C body temperature, continuously
  • What it misses Locomotor activity, zone/spatial preferences
AnyCage Lite — single-cage studies · AnyCage+ — rack-scale cohorts
Temperature Activity
Compare AnyCage Lite vs AnyCage+
Mouse Matrix
Temperature + Activity
Temperature + Activity monitoring
  • Best for Activity phenotyping, progressive-disease models, circadian research, and dark-phase activity
  • What it captures Individual animal ID + ±0.1°C temperature + locomotor activity + zone/spatial preferences, all continuously at 100–250 ms
  • Why you need it When activity patterns (or changes in them) are the research endpoint, or when you need to correlate physiological changes with activity changes
Mouse Matrix — plate-based, scales with study size
Temperature Activity
See Mouse Matrix

Not sure? Use the ROI calculator below — it recommends a product based on your study design.

ROI Calculator

Estimate your labor savings

Estimate the labor savings of replacing manual cage checks with continuous home-cage monitoring. Adjust the inputs and see results update live.

Your Study Parameters

0% 100%

Your Estimated Results

Estimates only. Actual savings depend on study design, facility protocols, and labor structure. Contact UID for a deployment-specific assessment.

Side-by-Side Comparison

All three systems, compared

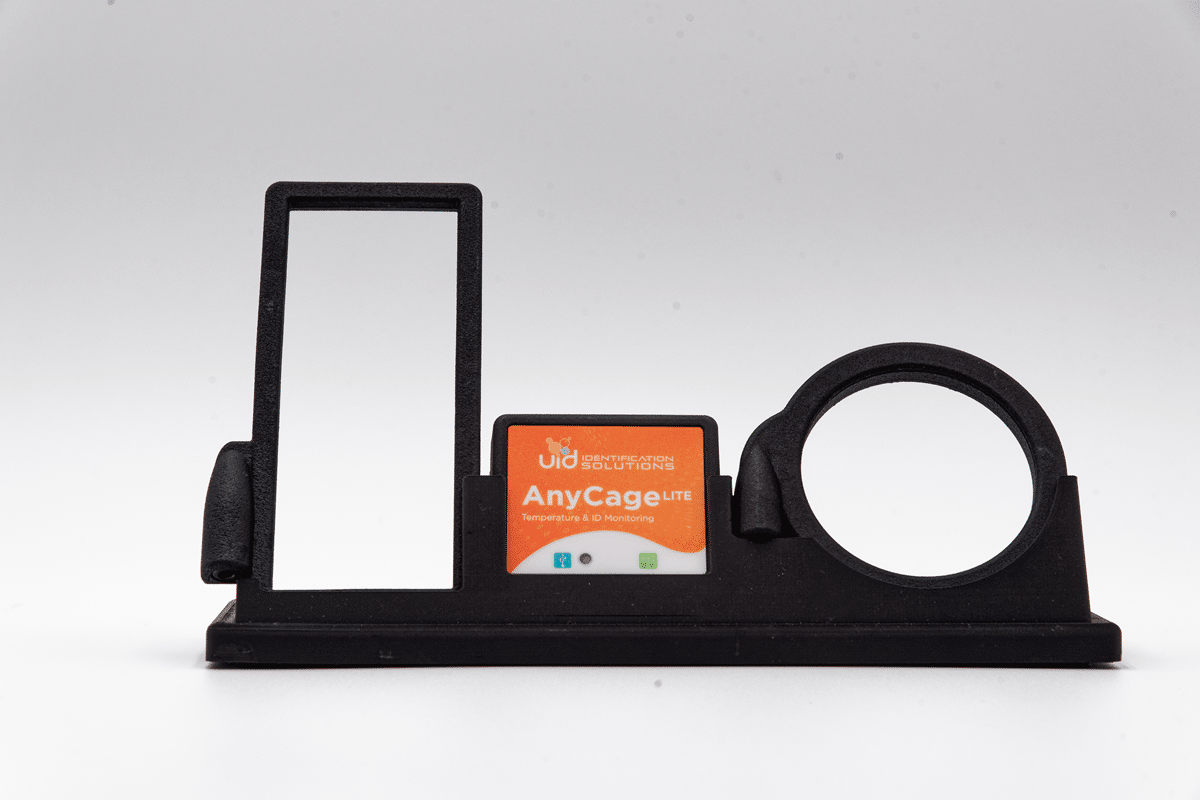

AnyCage Lite home cage temperature monitoring reader
LITE
AnyCage Lite

Single-cage temperature monitoring for small-scale studies. USB-connected, magnetic or clip mount, up to 8 readers per PC.

Temperature Activity
View product

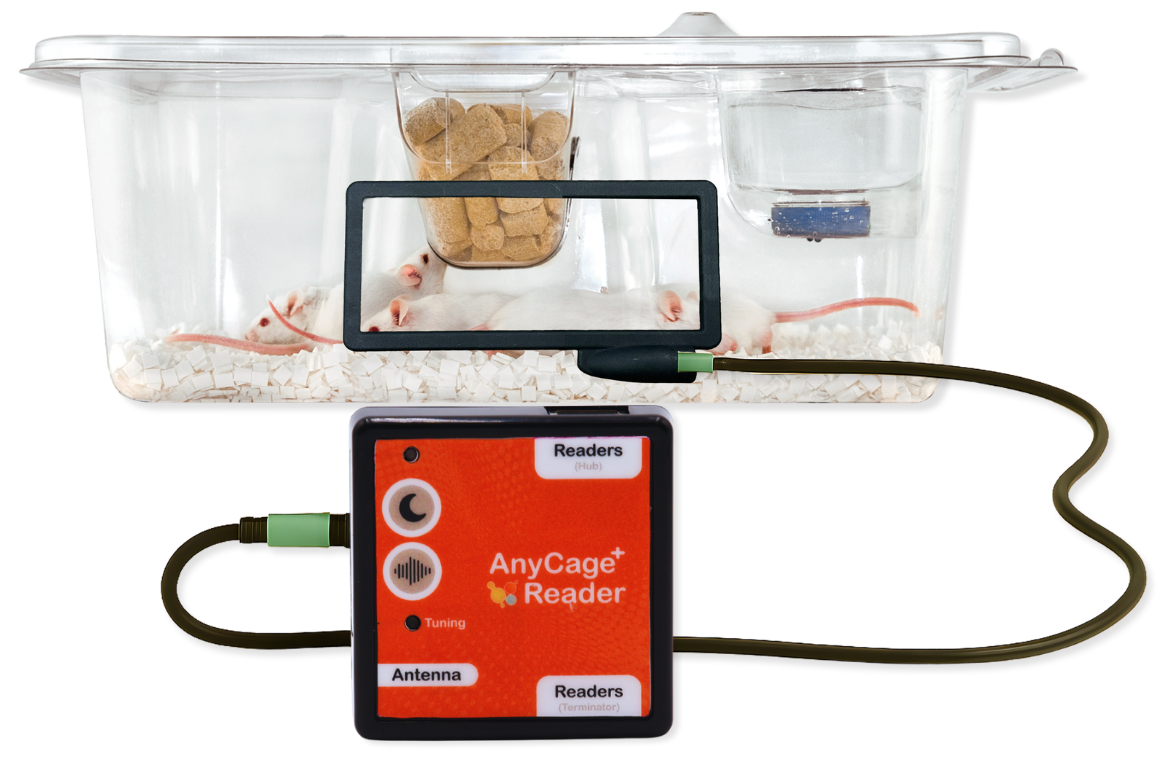

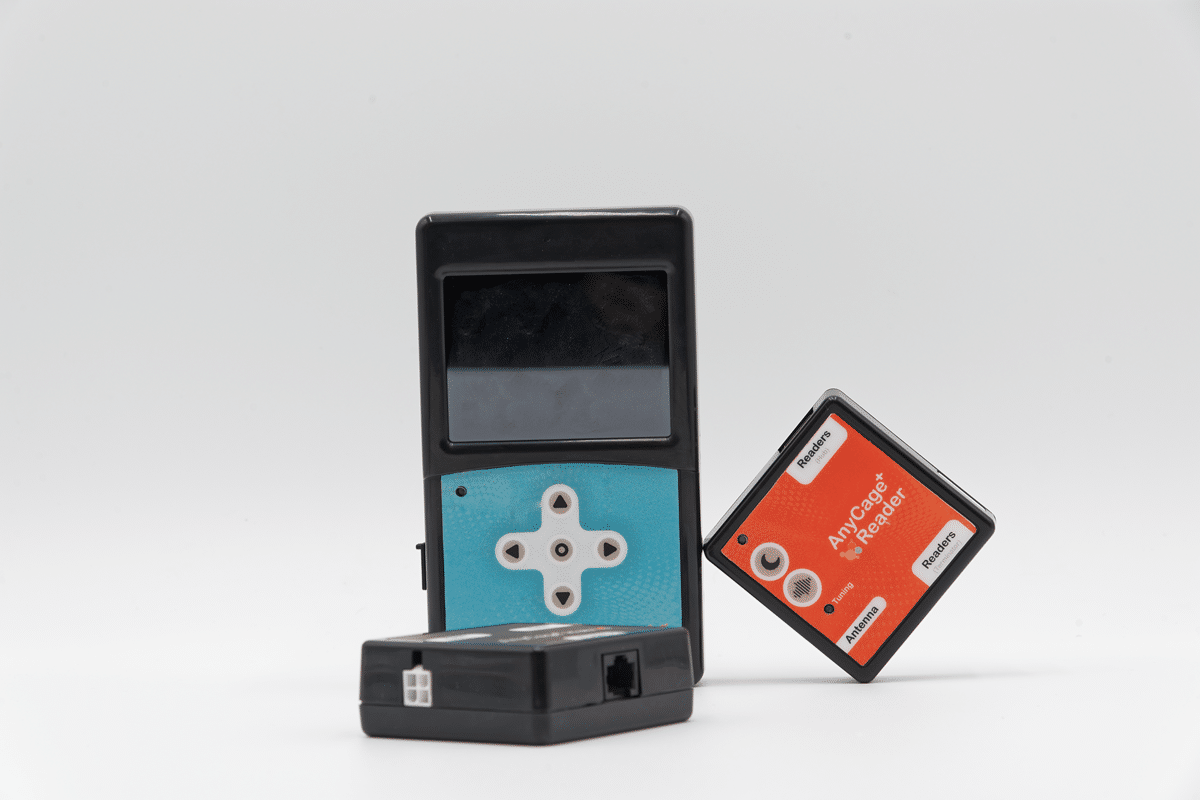

AnyCage+ rack-scale home cage monitoring system
PLUS
AnyCage+

Rack-scale continuous temperature monitoring for cohorts of 96+ animals. Controller-based, local or cloud via VivoTraq.

Temperature Activity
View product

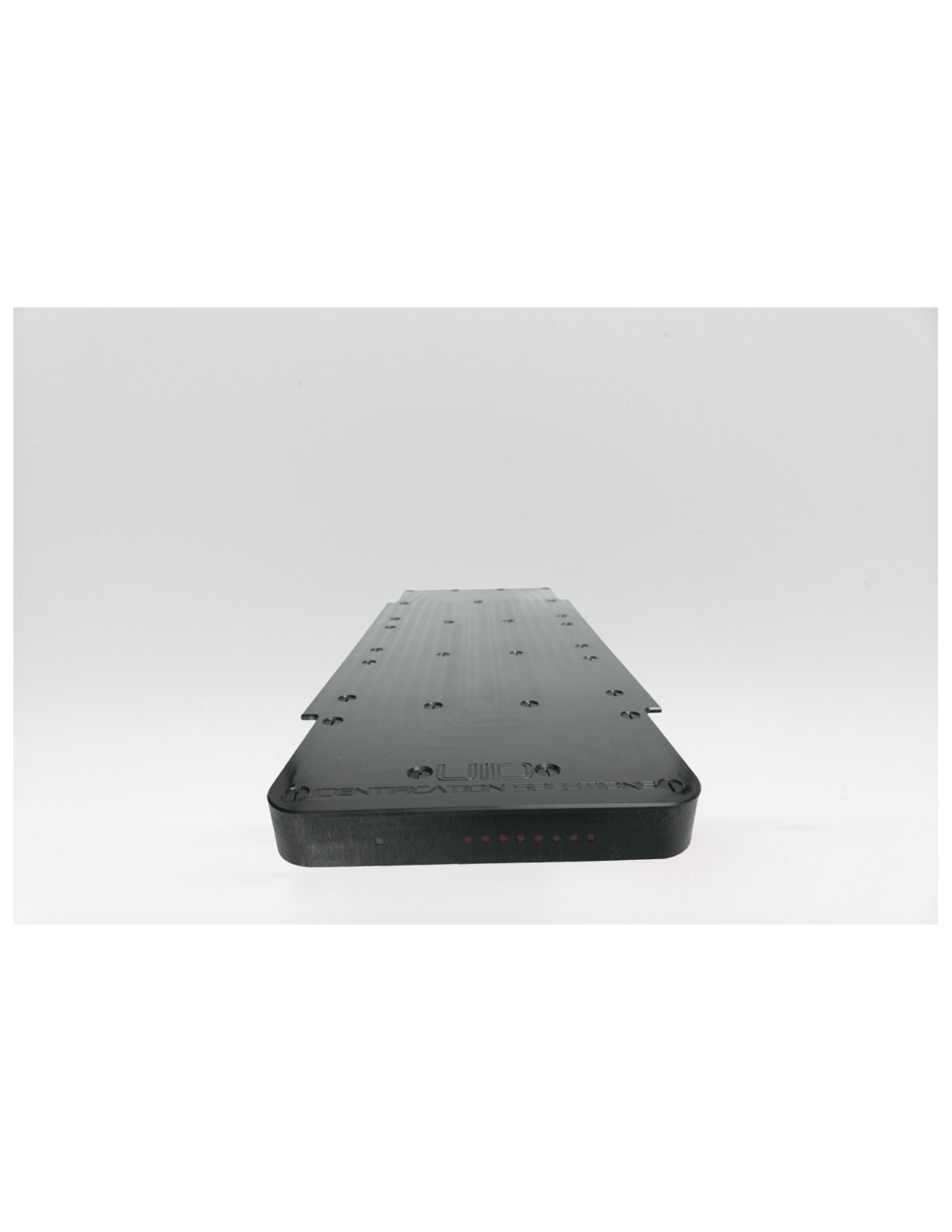

Mouse Matrix plate reader with LED indicators
MATRIX
Mouse Matrix

Full activity + physiological platform. Temperature, locomotor activity, and zone tracking per individual animal at 100–250 ms resolution.

Temperature Activity
View product
Feature AnyCage Lite AnyCage+ Mouse Matrix
Monitors Temperature Temperature Temperature + Activity + Location
Ideal for Single cages, small studies Rack-scale, large cohorts Detailed activity and physiological data
Scalability Up to 8 cages Up to 96 cages per system Up to 48 plates per system
Animals tracked Individual or group-housed up to 5/cage Individual or group-housed up to 5/cage Individual or group-housed up to 5/cage
Monitoring rate Continuous (if connected to PC) Continuous Continuous w/ ea. zone scanned every 100–250 ms
Mount Magnetic or clip mount Magnetic or clip mount Plate under cage
Connectivity USB + PC Controller, Hubs, Readers, PC Controller, PoE switch, PC
Temp accuracy ±0.1°C (30–46°C) ±0.1°C (30–46°C) ±0.1°C (30–46°C)
Activity tracking
Zone / spatial tracking
Microchip UID UCT-2112 UID UCT-2112 UID UCT-2112

AnyCage Lite

Single-cage temperature monitoring for small studies.

Request Info →

AnyCage+

Rack-scale deployment for large cohorts.

Request Info →

Mouse Matrix

Activity + physiological platform.

Request Info →

Not sure which system fits?

Tell us about your study and we'll help you scope the right configuration.

Request Consultation
