Rack-scale capacity
Monitor up to 96 cages per system. Designed from the ground up for high-density IVC racks and large study cohorts requiring simultaneous, continuous coverage.
PLUS
Temperature Monitoring · Rack-Scale
AnyCage+
Scalable temperature monitoring built for large cohorts. Collect and analyze animal temperature data for 96+ cages with Data Collector or VivoTraq software.
Temperature
Activity
Product Overview
Designed for the scale of modern research operations

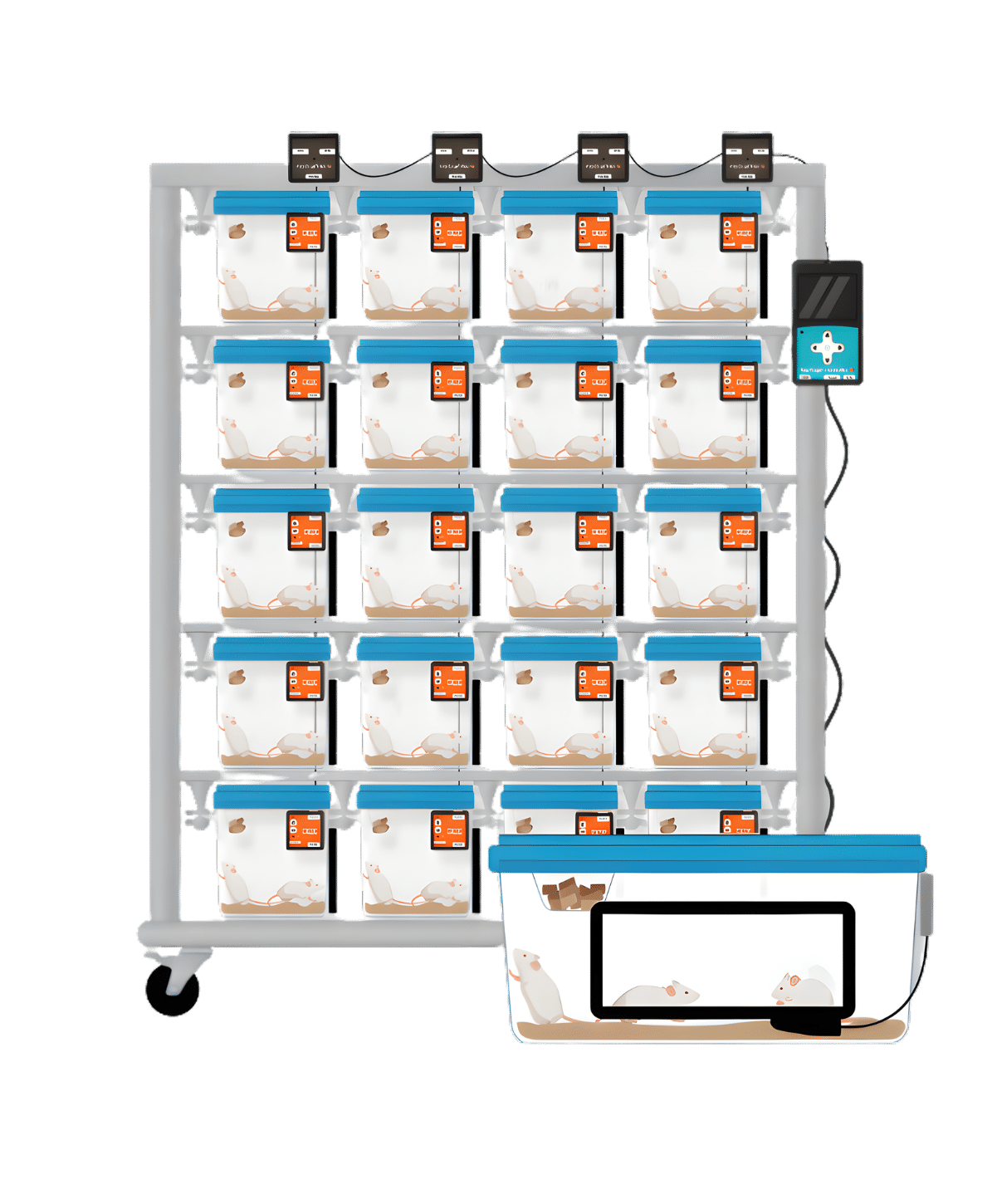

AnyCage+ provides rack-scale home cage monitoring for facilities running large cohorts or multi-cage operations. Where AnyCage Lite handles individual cages, AnyCage+ is built to cover entire racks seamlessly — delivering continuous animal temperature data without disruption.

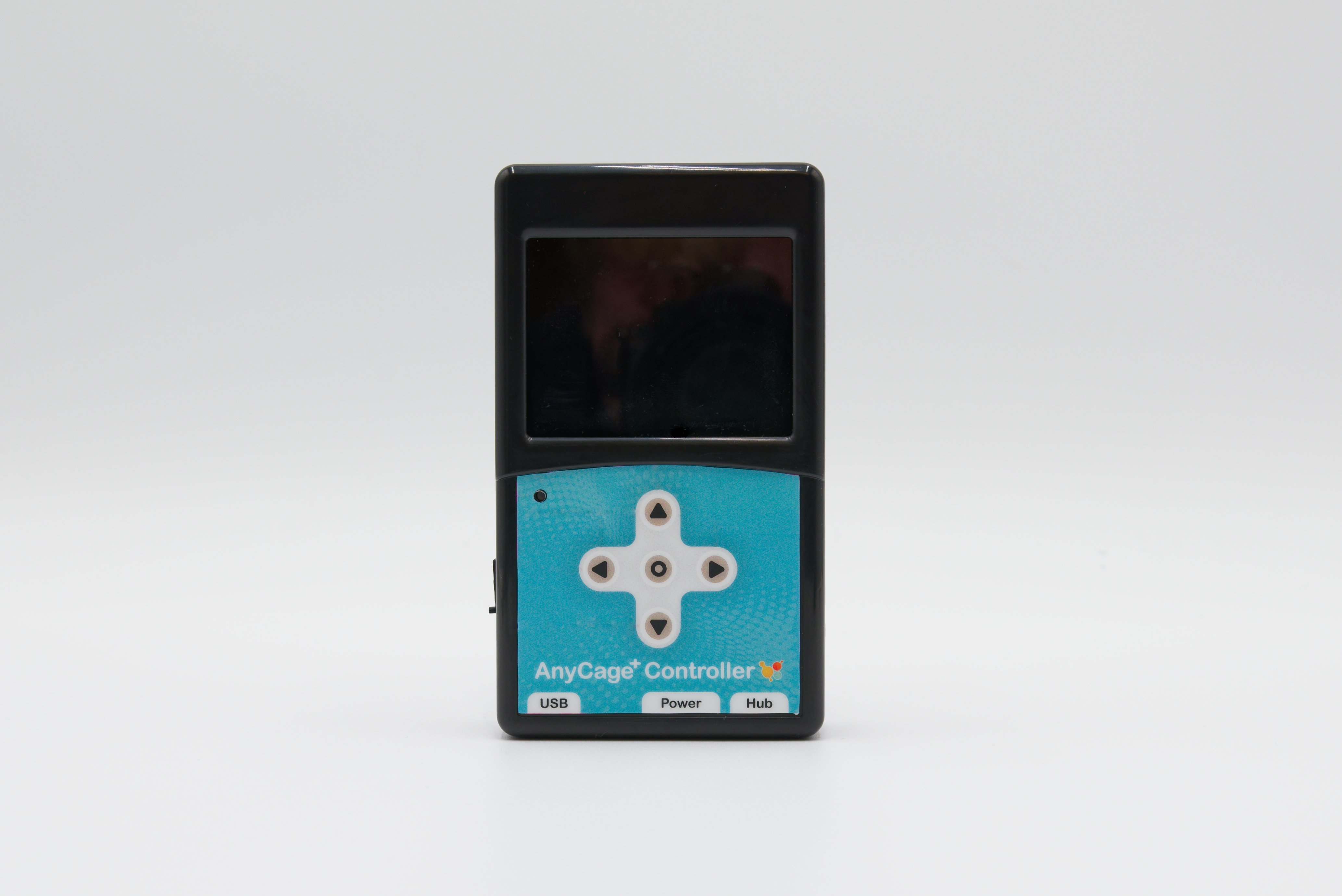

At the heart of the system is a controller-based architecture that aggregates data from every cage antenna. Collect data locally or stream in real-time to the VivoTraq cloud for remote dashboard access and automated alerts without on-site presence.

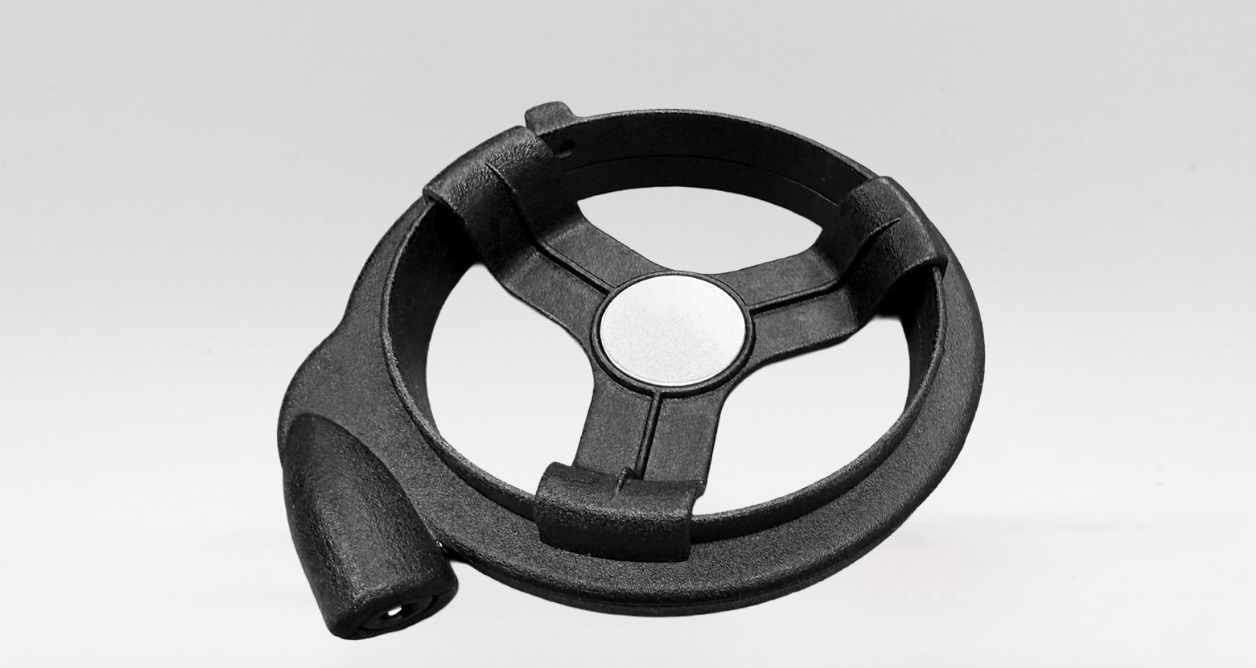

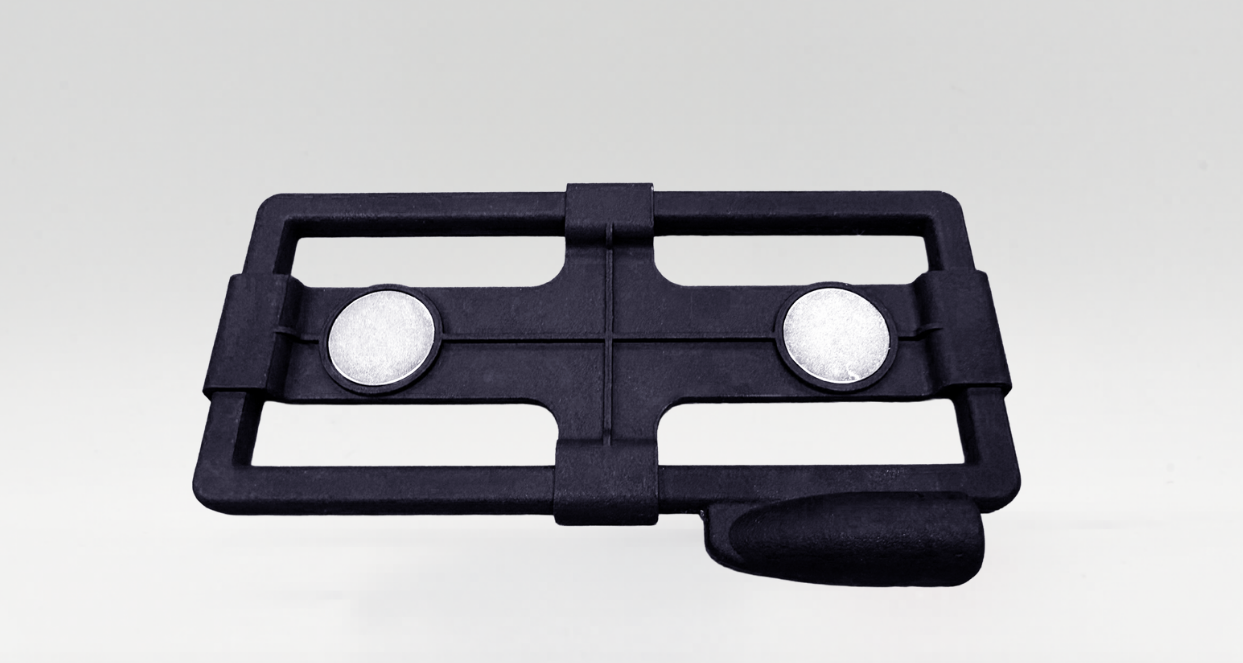

Antennas come in 2″×5″ rectangular and 3″ round formats. Antennas mount magnetically or via rack-specific clips cleanly onto rack hardware with no adhesive, tools, or modifications. UID UCT-2112 temperature-sensing microchips power individual animal identification and temperature data at ±0.1°C accuracy across the 30–46°C physiological range.
Key Capabilities
Everything needed for rack-scale monitoring
AnyCage+ combines hardware, software, and cloud infrastructure into a single deployable system — no custom integration required.
Real-time insights with VivoTraq Cloud
Stream continuous temperature data to a local server or the VivoTraq cloud for remote dashboards, automated alerts, and multi-site collaboration.
Clip-mount antennas
Antennas mount magnetically or via rack-specific clips cleanly onto rack hardware — no tools, no adhesive, no rack modifications. Available in 2″×5″ rectangular and 3″ round formats.
No PC required — IT-free deployment
Self-contained controller aggregates data from every antenna on the rack — no per-cage computer, no IT ticket, no custom middleware. Plug in, connect to your network, and start streaming.
±0.1°C accuracy
UID UCT-2112 temperature-sensing microchips deliver lab-grade temperature readings across 30–46°C — the full physiological range for rodent research.
IACUC-aligned welfare
Non-invasive, undisturbed monitoring supports the 3Rs refinement principles and provides a documented record of refined-care compliance across all monitored animals.
Data Quality
Individual-animal resolution at rack scale
Pricing & Kits
Modular kits — scale as you go
Start with the 8-cage starter kit and expand incrementally with smaller add-on kits as your cohort grows.
AnyCage+ 8-Cage Starter Kit
Everything needed to start monitoring up to 8 cages
The starter kit includes the AnyCage+ controller and enough hubs, readers, and antennas to monitor 8 cages. Add expansion kits as needed to scale to full rack-scale deployments (96+ cages).
Kit includes
- 1× AnyCage+ Controller
- 1× Hub
- 8× Readers
- 8× Antennas (2″×5″ rectangular or 3″ round)
- UID UCT-2112 temperature microchips sold separately (contact for volume pricing)
Request Quote
Smaller study? Start with AnyCage Lite from $1,995.
Expansion Kits & Components
Add capacity as your cohort grows
-
8-Cage Expansion Kit
1 Hub · 8 Readers · 8 Antennas -
4-Cage Expansion Kit
1 Hub · 4 Readers · 4 Antennas -
2-Cage Expansion Kit
2 Readers · 2 Antennas - Controller (individual)
Product Comparison
Choose the right system for your study
All three platforms share the same UID UCT-2112 microchip ecosystem. Your choice depends on study size, data needs, and infrastructure.
| Feature |
AnyCage Lite
Individual cages · Small studies
|
You are viewing
AnyCage+
Rack-scale · Large cohorts
|
Mouse Matrix
Activity and physiological data
|
|---|---|---|---|
| Monitors | Temperature | Temperature | Temperature + Activity + Location |
| Ideal for | Single cages, small studies | Rack-scale, large cohorts | Detailed activity and physiological data |
| Scalability | Up to 8 cages | Up to 96 cages per system | Up to 48 per system |
| Animals tracked | Individual or group-housed up to 5/cage | Individual or group-housed up to 5/cage | Individual or group-housed up to 5/cage |
| Monitoring rate | Continuous (if connected to PC) | Continuous | Continuous w/ ea. zone scanned every 100–250 ms |
| Mount | Magnetic or clip mount | Magnetic or clip mount | Plate under cage |
| Connectivity | USB + PC | Controller, Hubs, Readers | Controller, PoE switch, PC |
| Temp accuracy | ±0.1°C (30–46°C) | ±0.1°C (30–46°C) | ±0.1°C (30–46°C) |
| Microchip | UID UCT-2112 | UID UCT-2112 | UID UCT-2112 |
| Software | — | VivoTraq | Mouse Matrix |
Need activity + temperature? See Mouse Matrix → · Smaller studies? AnyCage Lite → · Compare all →
In Detail
See the system up close
Ready to deploy
Your research. Your configuration.
AnyCage+ scales to your study, fits your cages, and integrates with your infrastructure.
